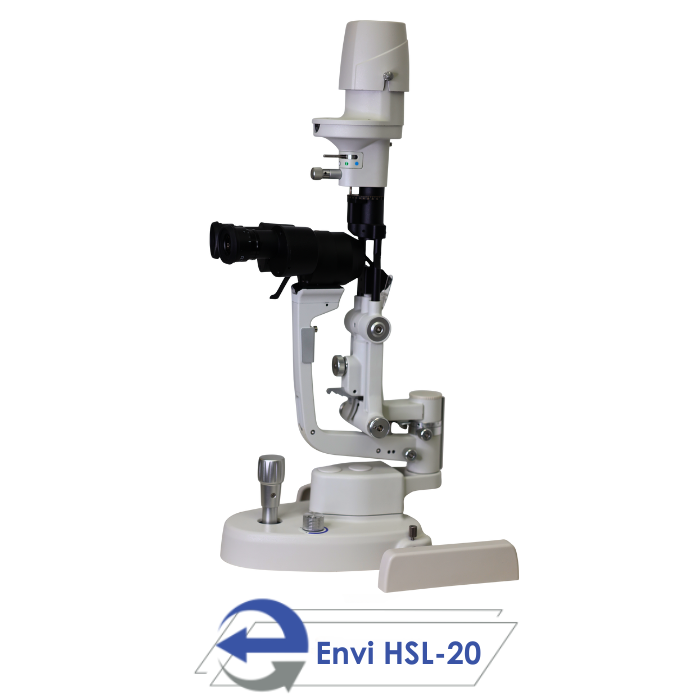

The Envi HSL-20 is an advanced slit lamp microscope designed

for high performance, accurate diagnostics, reliability, and

patient comfort. High-quality optics result in excellent image

quality and resolution. The HSL-20 features light tower LED

illumination and two-step magnification.

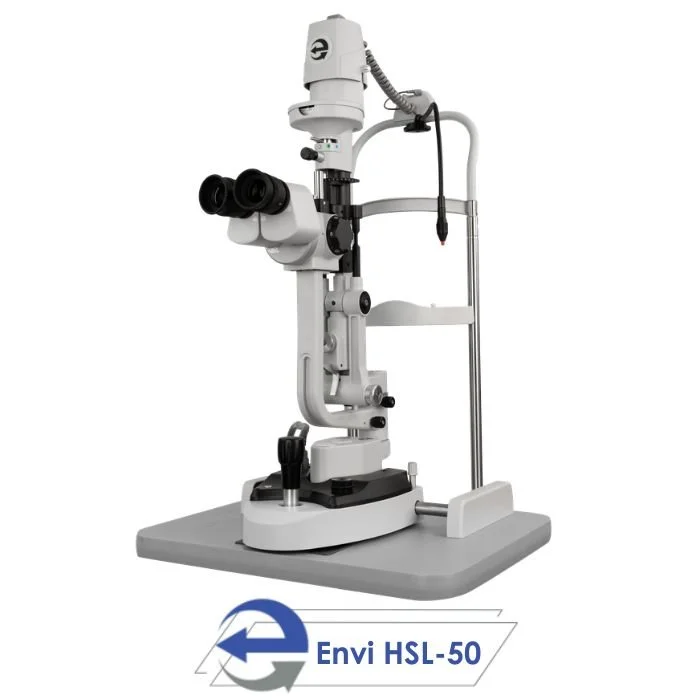

The Envi HSL-50 is an advanced LED slit lamp microscope designed for

performance, reliability, and patient comfort, in a cost-effective

package. High-quality optics result in excellent image quality and

resolution. The HSL-50 features 5-step drum rotation for selecting the

desired magnification setting (multi-mag)..

The Envi HSL-50 is an advanced LED slit lamp microscope designed for

performance, reliability, and patient comfort, in a cost-effective

package. High-quality optics result in excellent image quality and

resolution. The HSL-50 features 5-step drum rotation for selecting the

desired magnification setting (multi-mag).

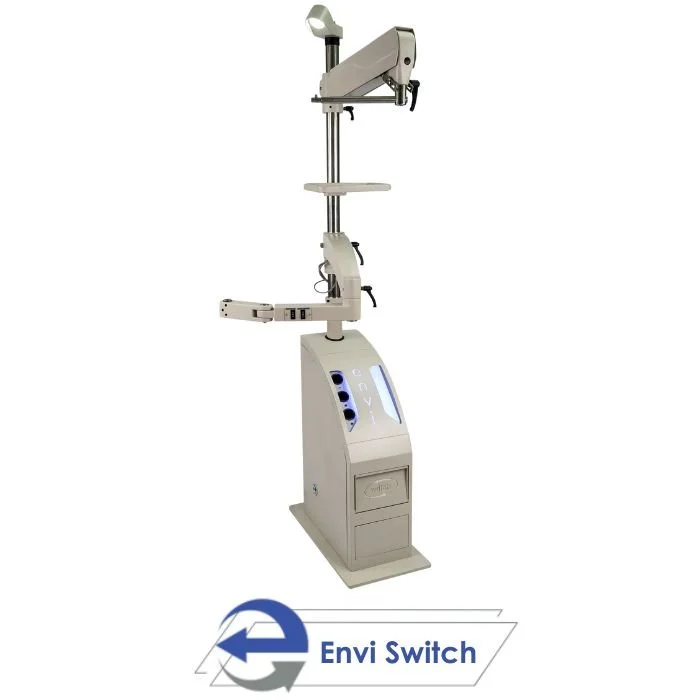

The Envi Switch is a versatile stand that was custom designed and built to fit any practice size and tailors to the needs and wishes of any physician. The Switch is capable of the smallest footprint in the industry when paired with any Envi chair. It is also capable of serving as a stand-alone unit when fit into its custom baseplate. Switch it up with multiple configurations, unique add-ons, and practical storage.

Envi S1-TC:

Complete power chair (Up/Down)

Chair up/down operated from side with soft-touch buttons

Chair tilt control located on handle on back of the chair

Adjustable headrest with easy lock and unlock

Footswitch with up/down controls

Chair rotates 180 degrees with foot lock on the backside of chair

Folding footrest with spring assist

Finishes And Upholstery:

High quality and durable upholstery

Customizable upholstery colors available

Chair base comes standard in white to match Envi S1-S Instrument stand

Envi S1-AR:

Complete automatic power chair (up/down, recline back/forward, and auto)

Easily accessible soft-touch buttons on both sides of the chair

Armrests go up and down with chair when reclining

Adjustable headrest with easy lock and unlock

Footswitch with up/down controls

Chair rotates 180 degrees with foot lock on the backside of chair

Folding footrest with spring assist

Finishes And Upholstery:

High quality and durable upholstery

Customizable upholstery colors available

Chair base comes standard in white to match Envi S1-S Instrument stand

Envi S1-MC:

Power chair (Up/Down)

Chair up/down operated from foot pedal

Chair tilt control located on handle on back of the chair

Adjustable headrest with easy lock and unlock

Chair rotates 180 degrees with handle lock on side of chair

Folding footrest with spring assist

Finishes And Upholstery:

High quality and durable upholstery

Customizable upholstery colors available

Chair base comes standard in white to match Envi S1-S Instrument stand

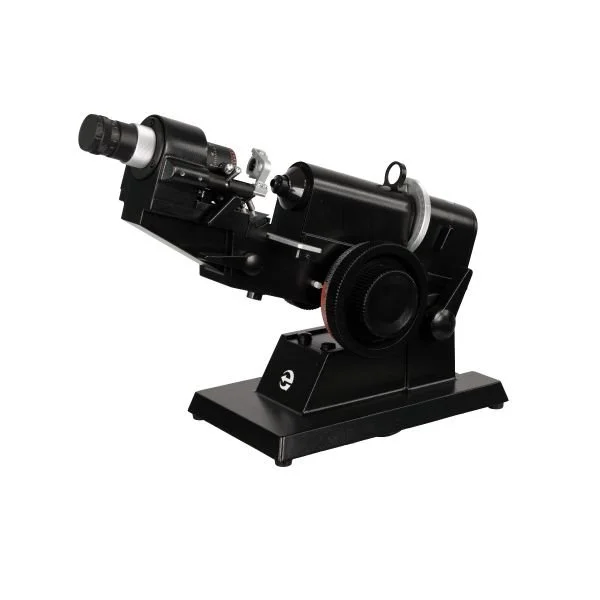

Envi LM-10M Manual Lensmeter

LED Manual Lensmeter

External power and axis reading

90° Inclination range

Comes standard with prism compensator

Target illumination switchable (Green/Standard LED)

Technical Specifications:

Range of diopter measurement 0 Diopter - ±20 Diopter

Minimal scale value 0.125D at 0D to ±5D, .25 at ±5D to ±20D

Astigmatism axis of cylindrical lens 0 to 180°, minimum scale value 5°

Prism base angle 0 to 180°, minimal scale value 5°

Regulation of ocular visibility ±5 Diopter

Size of lens 30MM to 90MM

Auxiliary Lenses:

O.Q: Open aperture

R: Retinoscopic lens;+1.50 diopter spherical lens(for 67cm)

P: Polarizing filter

RMV: Red Maddox rod is set vertically.

RMH: Red Maddox rod is set horizontally

WMV: White Maddox rod is set vertically

WMH: White Maddox rod is set horizontally.

RL: Red lens

GL: Green lens

+.12 Spherical lens: +.12 diopter spherical lens. Spherical power can be set by 0.12 diopter

PH: 1mm diameter pinhole is provided

6 U: 6 diopter base up prism

10I: 10 diopter base in prism

Diopter Cross: Five position rotating drum

Eyepiece: +-.50: +-0.5 diopter cross cylinder with horizontal plus(+) axis.

OC: Occuluder

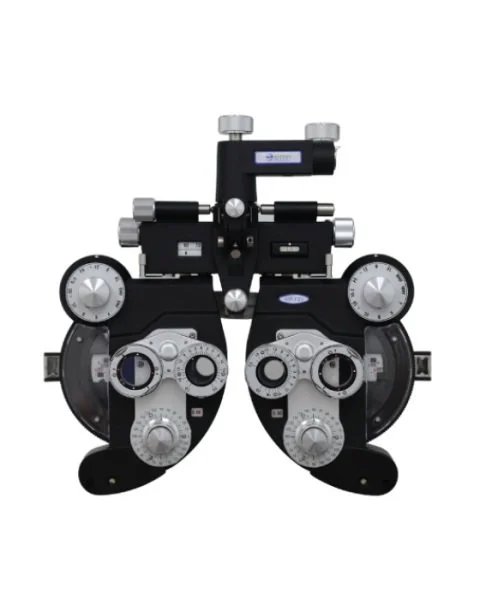

Range Of Measurement:

Myopia: 0 to -19.00 diopter in 0.25 diopter step

Hyperopia: 0 to +16.75 diopter in 0.25 diopter step

Astigmatism: 0 to -6.00 diopter(-8.00 diopter) in 0.25 diopter step

Phoria and vergency: 20 to 0 to 20 by 1 step;Inner 40;Outer 40(50);Upward anddownward 40(46)

Near vision test: Main optical axes of both lenses converges by means of a tilt mechanismat 40cm in front of the eyes at 64mm P.D. If P.D. for far vision is less then54mm,converging operation stops.

Pupillary Distance: 48 to 75mm by 1mm step

Binocular balance test: Rotary prism and polarizing lens methods are available.

Auxiliary Lenses:

O.Q: Open aperture

R: Retinoscopic lens;+1.50 diopter spherical lens(for 67cm)

P: Polarizing filter

RMV: Red Maddox rod is set vertically.

RMH: Red Maddox rod is set horizontally

WMV: White Maddox rod is set vertically

WMH: White Maddox rod is set horizontally.

RL: Red lens

GL: Green lens

+.12 Spherical lens: +.12 diopter spherical lens. Spherical power can be set by 0.12 diopter

PH: 1mm diameter pinhole is provided6 U: 6 diopter base up prism

10I: 10 diopter base in prism

Diopter Cross: Five position rotating drum

Eyepiece: +-.50: +-0.5 diopter cross cylinder with horizontal plus(+) axis.

OC: Occuluder

Range Of Measurement:

Myopia: 0 to -19.00 diopter in 0.25 diopter step

Hyperopia: 0 to +16.75 diopter in 0.25 diopter step

Astigmatism: 0 to -6.00 diopter(-8.00 diopter) in 0.25 diopter step

Phoria and vergency: 20 to 0 to 20 by 1 step;Inner 40;Outer 40(50);Upward anddownward 40(46)

Near vision test: Main optical axes of both lenses converges by means of a tilt mechanismat 40cm in front of the eyes at 64mm P.D. If P.D. for far vision is less then54mm,converging operation stops.

Pupillary Distance: 48 to 75mm by 1mm step

Binocular balance test: Rotary prism and polarizing lens methods are available.

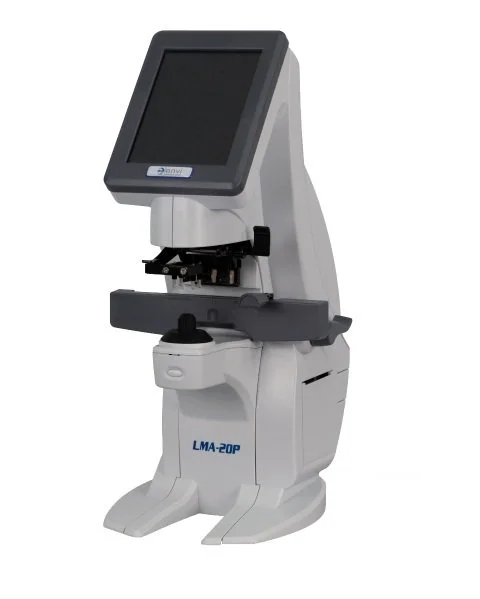

Envi LMA-20P

5.6" full color touchscreen that can be changed toblack/white

Wide range of measurement from -40D to +25D

UV, Blue ray, and visible light transmittance measurement available

Hartman Sensor enables measurement of a wide variety of lenses

Auto calibration to calibrate fine errors during measurement

Come standard with RS-232C and USB port for data transfer

Comes standard with Thermal Printer

Technical Specifications:

Sphere -40.00D - +25.00D

Cylinder(+, ±, -) 0 - +10.00D

Axis 0° - 180° (1° Steps)

ADD 0 - 10.00D

Prism(X-Y/P-B) 0-10▲

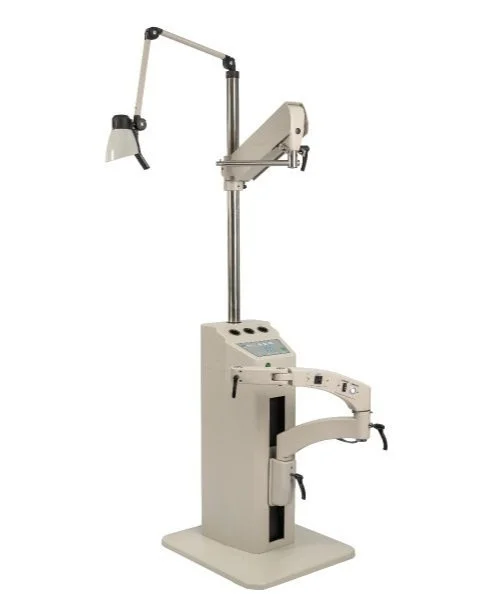

Features:

3 charging wells and instrument tray

Soft touch button controls for power of stand, slit lamp, overheadlamp, binding post, and two auxiliary inputs

Control up/down of chair from slit lamp arm

One hand operation of slit lamp arm

Refractor arm with additional 3rd arm available

LED Overhead lamp

Technical Specifications:

Slit lamp arm vertical range: 12 in

Slit lamp arm weight capacity: 80 lbs

Phoropter vertical range: 10 in

Total height of unit: 84.6in

Base size: 23.6in x 20.8in
